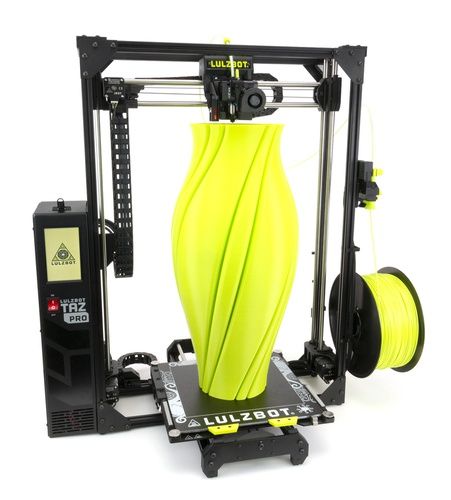

LulzBot TAZ Pro XT+
Reach new heights with the LulzBot TAZ Pro XT+
Designed for those who think big and print bigger, the TAZ Pro XT+ offers an impressive z-axis reach, letting your designs increase their layers to new heights. This 3D printer boasts the Asteroid Tool Head with a hefty 1.2mm nozzle from the factory, ready to lay down layers like a boss.
Get to Know:
Whether you're crafting towering prototypes, indispensable manufacturing aids, or bespoke print-on-demand parts, the TAZ Pro XT+ is your go-to solution.
So, go ahead, aim high, print tall, and let the LulzBot TAZ Pro XT+ take your 3D printing to new, dizzying heights!
The LulzBot TAZ Pro XT+ gives you a single extrusion 2.85mm Tool Head that can put down large layers in a tall 23" build area with superior 3D print quality, and easy, professional results.
What's in the Box:
- Single Extrusion Asteroid Tool Head
- Magnetic Flex Build System with machined aluminum under core
- Genuine BLTouch Mesh Bed Leveling
- 2.85mm extruder featuring a hardened alloy nozzle capable of printing high-strength composite polymers like PA-CF and carbon-fiber filled Nylon along with more traditional materials like ABS, PETg, PLA, and NinjaFlex
- Large 280 x 280 x 586 mm build volume with heated build plate
- Automated X/Y/Z offset calibration, nozzle wiping, and self-leveling features
- Enhanced 32-bit electronics for greater processing power, more memory, and quiet operation
- Advanced "Jetpack" Filament runout and stripping detection
- Cable chain and reinforced electrical connectors for long wire harness life
- 5" full color touch screen
| 3D Printing Technology | FFF (Fused Filament Fabrication) |
| Build Volume | 285 x 285 x 586 mm (11.22 x 11.22 x 23.07 inches) |
| Standard Tool Head Model | Asteroid 285 |
| Equipped Layer Height Range | 0.3mm (300 microns) to 0.9mm (900 microns) |
| Platform Layer Height Capabilities |
0.05mm (50 microns) to 1.8mm (1800 microns) |
| Nozzle Diameter & Material |
1.2mm GammaMaster® Steel |
| Maximum Hot End Temperature |
290°C (554°F) - Firmware Limited |
| XYZ Positional Resolution |
X and Y axes - 0.01mm (10 microns), Z axis - 0.002mm (2 microns) |
| Movement System |
GT2 Belt Drive with Igus SST Rods and Polymer Bushings |
| Maximum Travel Speed | 300 mm/s - Firmware Limited |
| Print Bed Heater |
360W 24V Silicon |
| Print Bed Material |
Magnetic Flex Bed System |
| Maximum Print Bed Temperature |
110°C (230°F) |
| Filament Diameter Compatibility |
2.85mm (Standard), 1.75mm (Optional) |
| Filament Sensor |
Runout and Stripping Detection |
| Mainboard |
32-bit Archim 2.2b with Trinamic TMC2130 drivers for quiet printing |
| Firmware |
Marlin |
| Bed Leveling System |
Automatic BLTouch 16-Point Mesh |
| Calibration |
Automatic X-Axis Tramming, Z-Offset, and Backlash Compensation |
| Power Supply |
500W 24V Mean Well, Auto-Switching |
| Power Input |
100VAC-240VAC |
| Slicer Software Recommendation |
Cura LE (LulzBot Edition) |
| OS Compatibility | Windows, macOS, Linux |
| Supported File Formats |
STL, OBJ, X3D, 3MF |
| Operating Temperature Range |
41°F to 113°F (5°C to 45°C) |
| Supported Print Materials |
PLA, TPU, ABS, PETg, PVA, PVB, Nylon, PC, and others below 290°C |
| Enclosure |
Optional Accessory Available upon Request |
| Connectivity Options |
USB Serial, Includes 16GB Flash Drive for Standalone Printing |
| Certifications |
FCC, CE, RCM, ETL (Intertek/UL), CSA, OSHWA, WEEE |
| Warranty |
1-year standard with options for extended warranties |
| Country of Origin |
USA |
| Manufacturer | Aleph Objects |
|---|
