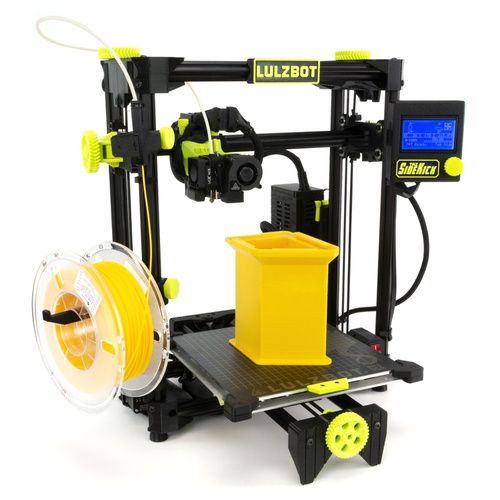

Lulzbot SideKick 747 - Premium
3D Printing Made Easy.
A 3D printer that is faster, simpler, and ready to print out of the box with free software!
The SideKick 747 - Premium comes in a sleek Stealth Black color palette and equipped with a Smooth Magnetic Flex Bed, gLCD, and Meteor 175 Tool Head. Print with the same wide variety of materials and enjoy the features of the award-winning line of LulzBot® 3D printers.
Get to Know:
The SideKick 747 - Premium is a plug and play, out of the box ready, essential tool for every hobbyist, teacher, and professional user.
No tools necessary. You have everything you need at your fingertips to get started printing right away!
The SideKick 747 - Premium is a 3D printer that requires no Tools! We've made set-up faster by utilizing simple thumbscrews throughout the design. Even swapping Tool Heads is faster without the need find a set of allen wrenches!
This highly configurable printer allows you to easily make adjustments to your printer whenever you are looking to upgrade or try one of it's many other options.
What's in the Box:
- Stealth Black SideKick 747
- Meteor 175 Tool Head
- Smooth Magnetic Flex Bed
- gLCD Controller
| 3D Printing Technology | FFF (Fused Filament Fabrication) |
| Build Volume | 232 x 232 x 248 mm (9.13 x 9.13 x 9.76 inches) |
| Standard Tool Head Model | Meteor 175 |
| Equipped Layer Height Range | 0.1mm (100 microns) to 0.4mm (400 microns) |
| Platform Layer Height Capabilities |
0.05mm (50 microns) to 1.8mm (1800 microns) |
| Nozzle Diameter & Material |
0.5mm Brass |
| Maximum Hot End Temperature |
295°C (563°F) - Firmware Limited |
| XYZ Positional Resolution |
X and Y axes - 0.01mm (10 microns), Z axis - 0.005mm (5 microns) |
| Movement System |
GT2 Belt Drive with Delrin V-Wheels and Aluminum Extrusion |
| Maximum Travel Speed | 300 mm/s - Firmware Limited |
| Print Bed Heater |
225W 24V Silicon |
| Print Bed Material |
SideKick 747 Magnetic Flex Bed v2 |
| Maximum Print Bed Temperature |
110°C (230°F) |
| Filament Diameter Compatibility |
1.75mm (Standard), 2.85mm (Optional) |
| Filament Sensor |
SideKick Runnout Sensor |
| Mainboard |
8-bit Einsy Retro with Trinamic TMC2130 drivers for quiet printing |
| Firmware |
Marlin |
| Bed Leveling System |
Automatic BLTouch 16-Point Mesh |
| Calibration |
Automatic X-Axis Tramming, Z-Offset Wizard |
| Power Supply |
350W 24V Mean Well, Manual Switching |
| Power Input |
100VAC-240VAC |
| Slicer Software Recommendation |
Cura LE (LulzBot Edition) |
| OS Compatibility | Windows, macOS, Linux |
| Supported File Formats |
STL, OBJ, X3D, 3MF |
| Operating Temperature Range |
41°F to 113°F (5°C to 45°C) |
| Supported Print Materials |
PLA, TPU, ABS, PETg, PVA, PVB, Nylon, PC, and others below 290°C |
| Enclosure |
N/A |
| Connectivity Options |
USB Serial, Includes 8GB SD Card for Standalone Printing |
| Certifications |
- |
| Warranty |
1-year standard with options for extended warranties |
| Country of Origin |
USA |
| Manufacturer | Aleph Objects |
|---|
