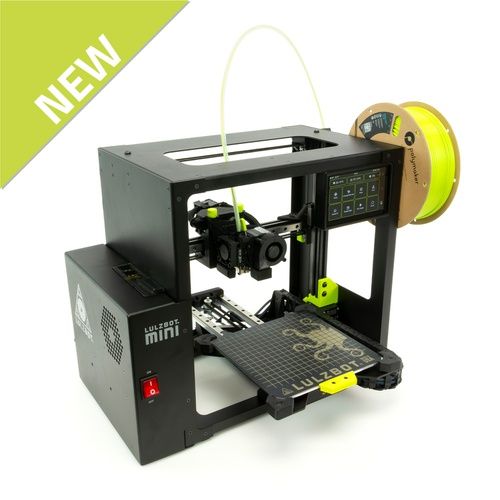

LulzBot 3D Printer Mini v3
3x Faster Printing!
This robust 3D printer is ideal for enthusiasts, educators, and professionals. It combines ease of use with fast, reliable printing, enhanced by onboard Wi-Fi and a CoreXZ movement system.
Get to Know:
Whether you're prototyping, crafting educational models, or just exploring creative possibilities, the LulzBot Mini 3 offers the performance and convenience you need to bring your ideas to life. Start printing smarter, faster, and more efficiently with the LulzBot Mini 3—the ultimate tool for modern makers.
Wi-Fi Connectivity: Step into the future of 3D printing with seamless wireless integration. Send your print jobs directly to the LulzBot Mini 3 from anywhere within your Wi-Fi network and manage your projects with ease using Mainsail.
Robust Design: The LulzBot Mini 3 is built to fit comfortably on any desktop, saving space while still offering a generous build volume of 180 x 180 x 180 mm. This 3D printer is perfect for workspaces, classrooms, or home offices.
Enhanced Usability: With a redesigned user interface, the LulzBot Mini 3 is more accessible than ever. The new touchscreen panel simplifies navigation and allows for real-time adjustments and feedback during the printing process.
Reliability and Precision: Leveraging the proven technology of its predecessors, the Mini 3 features upgraded hardware and advanced calibration algorithms to ensure exceptional print quality and reliability. Expect smooth, detailed prints with minimal setup.
Plug-and-Play Experience: Out of the box, the LulzBot Mini 3 is ready to go. Enjoy a hassle-free setup with automatic bed leveling and nozzle cleaning features. This printer is designed to simplify your workflow and enhance your printing experience.
What's in the Box:
- LulzBot Mini 3 3D Printer
- Premium Tool Kit
- 1kg PolyLite PLA LulzBot Green
- 16GB USB Thumb Drive
- LulzBot 3 Inch Die-Cut Sticker
- Unlimited Access to LulzLessons Curriculum
- Unlimited seats and downloads of Cura LE Software
- Standard 1 year warranty (extended warranty available)
| 3D Printing Technology | FFF (Fused Filament Fabrication) |
| Build Volume | 180 x 180 x 180 mm (7.09 x 7.09 x 7.09 inches) |
| Operating Footprint | 60.96 x 49.78 x 47 cm (24 x 19.6 x 18.5 inches) |
| Standard Tool Head Model | Meteor 285 Tool Head |
| Equipped Layer Height Range | 0.1mm (100 microns) to 0.4mm (400 microns) |
| Platform Layer Height Capabilities |
0.05mm (50 microns) to 0.9mm (900 microns) |
| Nozzle Diameter & Material |
0.5mm Nickel Plated Brass |
| Maximum Hot End Temperature |
300°C (572°F) - Firmware Limited |
| XYZ Positional Resolution |
X and Y axes - 0.01mm (10 microns), Z axis - 0.005mm (5 microns) |
| Movement System |
CoreXZ, GT2 Belt Drive, Linear Rails in X,Y, and Z axis |
| Maximum Travel Speed | 500 mm/s - Firmware Limited |
| Print Bed Heater |
109W 24V Silicon |
| Print Bed Material |
Magnetic Flex Bed System |
| Maximum Print Bed Temperature |
100°C (212°F) - Firmware Limited |
| Filament Diameter Compatibility |
2.85mm (Standard), 1.75mm (Optional) |
| Filament Sensor |
Runout and Stripping Detection |
| Mainboard |
32-bit BTT Manta M5P w/CB1 (FCC ID: 2BAS6-BIG) |
| Firmware |
Klipper (Mainsail User Interface) |
| Bed Leveling System |
Automatic BLTouch Adaptive Mesh |
| Calibration |
Intelligent X-Axis Tramming, Z-Offset, Input Shaping |
| Power Supply |
150W 24V Delta, Auto-Switching |
| Power Input |
100VAC-240VAC |
| Slicer Software Recommendation |
Cura LE (LulzBot Edition) |
| OS Compatibility | Windows, macOS, Linux |
| Supported File Formats |
STL, OBJ, X3D, 3MF |
| Operating Temperature Range |
41°F to 113°F (5°C to 45°C) |
| Supported Print Materials |
PLA, TPU, ABS, PETg, PVA, PVB, Nylon, PC, and others below 290°C |
| Enclosure |
Optional Accessory Available |
| Connectivity Options |
Wi-Fi Enabled, Includes 16GB Thumb Drive for Standalone Printing |
| Certifications |
- |
| Warranty |
1-year standard with options for extended warranties |
| Country of Origin |
USA |
| Manufacturer | Aleph Objects |
|---|
